Dongguan Hallsen Technology Co., Ltd
Hall switches are often used for the force control function of the fascia gun. By sensing the operating status of the fascia gun and the user's finger contact, the Hall switch can adjust the vibration frequency and force in real time to meet personal needs and comfort. Users can adjust the force of the fascia gun according to their feelings and treatment goals, making it more accurate and effective for specific muscle areas.
Because it is easy to carry, the fascia gun is required to be small and battery-powered, so the Hall switch is required to be highly sensitive-multi-functional, stable, and easy to install the magnet. The Hall switch plays the role of measuring the speed of the motor and detecting whether the motor is working. Recommended Model: HS732 High Sensitivity Latching Speed Detection Hall Switch

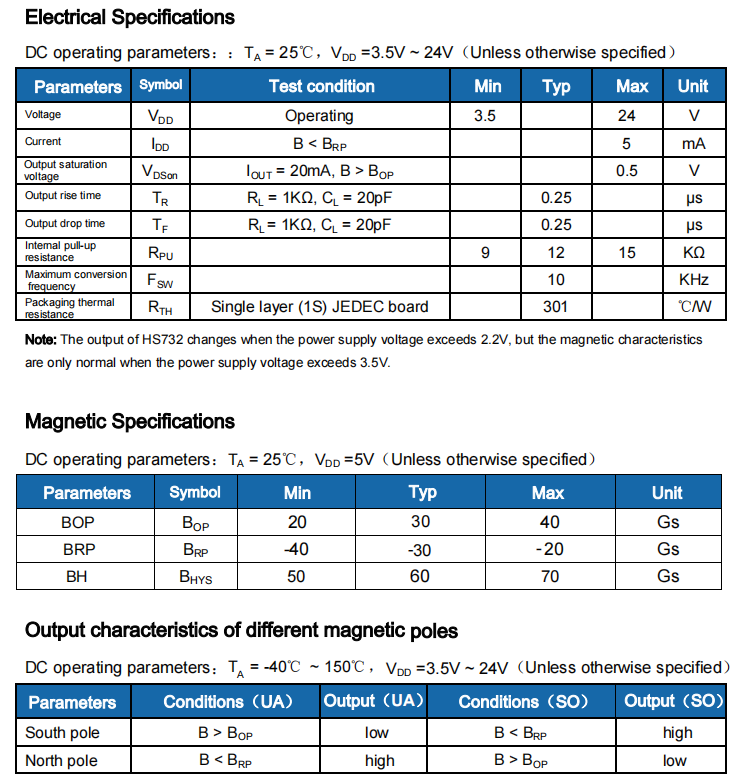

HS732 is a bipolar latching Hall effect sensor based on mixed-signal CMOS technology. The device integrates a voltage regulator, a Hall sensor with a dynamic bias compensation system, a Schmitt trigger and an open-drain output driver, all in one package.
This IC uses advanced chopper stabilization technology to provide accurate and stable magnetic switch points. In addition to the applications listed in the "Applications" below, this sensor has many other applications. Its design, parameters and performance are optimized for use in 5V-12V DC brushless motor phase conversion applications.
Because of the wide operating voltage and wide temperature range of HS732, it is very suitable for use in automotive, industrial and consumer industries.
This IC has a SOT package for surface mount and a single-row TO-92S flat package that can be directly inserted. Both 3-pin packages are RoHS compliant.
