The magnetic switch and magnet are installed at the angle between the keyboard end and the display end. The magnetic switch outputs a pulse signal through the induction magnet and transmits the signal to the CPU through the inverter. After receiving the signal, the CPU sends a control signal to switch the status of the laptop and the tablet.

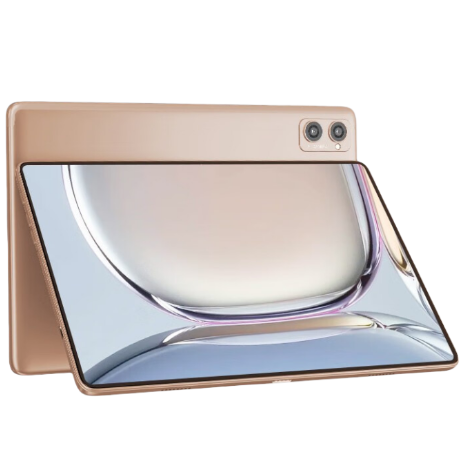

Flip detection: The flip detection function of the tablet can help users automatically switch to the corresponding working mode when closing or opening the screen. The Hall switch HAL248 can detect the flip status of the tablet in real time and transmit the detected information to the tablet's operating system to achieve automatic switching.
Recommended model: HS254 high-sensitivity unipolar Hall element
The HS254 Hall effect sensor is a micro-power Hall switch with stable temperature, strong stress resistance and low sensitivity tolerance. Excellent high-temperature performance is achieved by dynamic offset elimination using chopper stabilization technology. This approach reduces the offset voltage typically caused by device overmolding, temperature dependency, and thermal stress.

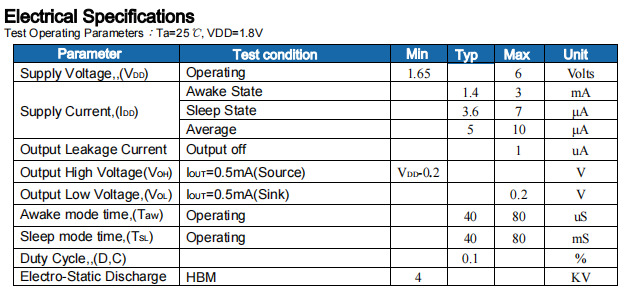

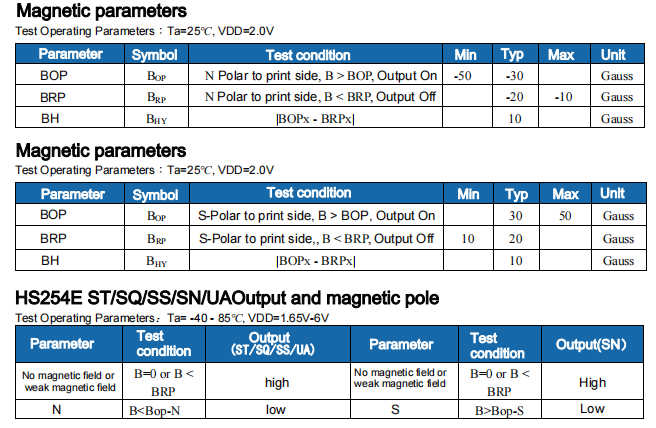

The HS254 is designed for low operating voltage (1.65V), and the chip contains the following functions on a single silicon die: voltage regulator, Hall voltage generator, signal amplifier, chopper stabilizer, Schmitt trigger, CMOS output driver. Advanced CMOS wafer manufacturing processes can be used to take advantage of low voltage requirements, component matching, very low input offset errors, and small component geometries. The device requires a unipolar magnetic field to operate.
The package type is a halogen-free version, which has been verified by a third-party laboratory.
